Hauschild SpeedMixer
The Original Pioneer of Centrifuge Mixing
Say YES to an Authentic SpeedMixer - Choose The Genuine SpeedMixer Trusted Globally

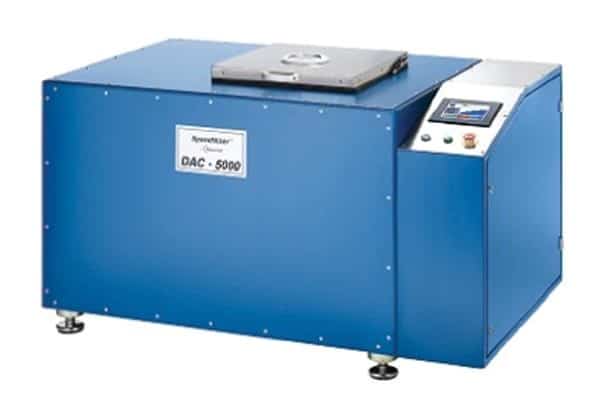

DAC L-Series
Specialty Production Series
Mix. Disperse. Grind. Pulverize.
The Hauschild SpeedMixer® specialty production series is designed to make the scale-up process from our laboratory mixing equipment fast and easy. These giant Hauschild SpeedMixer® machines provide the same performance, reliability, and safety that our lab scale equipment is known for. They have also been further production-ruggedized with touches like a manufacturing controls package, a remote drive system to allow for better ergonomics, and a massive 1-piece rotation arm which is machined from a single billet for safety and longevity. The result of all this attention to detail and quality from a team with 50 years of Hauschild SpeedMixer® design & manufacturing experience is equipment that has been proven to repeatably deliver high quality mixing and proven in the field to last for decades.
Commonly Used In:
Innovation. Reputation. Trust.
Top Features
Large scale Hauschild SpeedMixer® equipment has been in the field for over 15 years now. We understand that uptime and repeatable performance means everything in a production environment. That is why our equipment has been engineered and tested so rigorously to ensure reliability and repeatability, year after year, even in the most demanding environments.
In general, a mixing container should be ~1/3 to ~1/2 full to achieve the best mixing. This gives the material proper space to circulate and prevents material from contacting the lid of the container (critical when using buckets/pails with structure in the underside of the lid to support stacking). With available container volumes up to 3.5gal, and down to <500ml, Hauschild SpeedMixer® equipment can handle an extremely wide range of volumes and specific gravities. This option to have such a large mixing vessel, along with the equipment’s high main RPM & modern geometry, results in the ability to mix with extremely high power. The user can accurately and precisely control the RPM to mix powders, liquids, or pastes up to more than 5M cP.
Hauschild’s latest generation of production scale equipment has been updated to include the same interface and control system that is used in our new SMART DAC series. This means that the equipment not only supports more/more detailed programming, but it is also compatible with many new features and sensors.
Additional Features
Multi zone programming
Adjustable balance
Easy scale-up
Fast vacuum processing
Live control of parameters via encoder knob
Proven in the field to last for decades
Built with safety features that meet or exceed industry standards & requirements (NRTL field labeling optional)
Ergonomic design and intuitive user interface - continually improved based on user feedback since 1973
Compatible with hundreds of accessories to help optimize performance for your application(s)
Customizable for innovative applications that require innovative solutions
The Hauschild team will support you in selecting the best machine and accessories for your application.
As a Hauschild customer you will also receive training and technical support from our technical staff.
Case Study
Enhancing Safety and Efficiency in High-Energy Materials Manufacturing with Hauschild SpeedMixer®
A high energetic materials (explosives/propellants) manufacturer was having some problems/concerns with their existing mechanical mixing equipment. Though it could be operated remotely to theoretically protect workers, there was still a risk of ignition, which would be catastrophic. There were also significant risks associated with the cleaning or the potential for improper cleaning/material transfer. Furthermore, the mixer entrained air in the material, causing inconsistent and reduced performance of the material. After evaluating the Hauschild SpeedMixer®, the decision to upgrade their mixing technology was easy. The Hauschild SpeedMixer® could be operated remotely, just like their previous system and it offered some significant safety improvements. The ability to mix in a closed, single use, conductive container with no blades virtually eliminated the risk of ignition and all the dangers that were previously associated with cleaning and material transfer. They also noticed that the Hauschild equipment removed any entrained air and that their material properties were improved and more repeatable.
Title: Enhancing Safety and Efficiency in High-Energy Materials Manufacturing with Hauschild SpeedMixer®
This case study explores the challenges faced by a high energetic materials manufacturer in their existing mechanical mixing equipment and how the implementation of Hauschild SpeedMixer® resolved their concerns. The manufacturer sought to improve safety, eliminate risks associated with ignition, ensure proper cleaning and material transfer, and enhance material performance consistency.
The high energetic materials manufacturer specializes in the production of explosives and propellants, where stringent safety protocols are paramount. Their existing mechanical mixing equipment, although remotely operable, posed significant risks of ignition and suboptimal material performance due to entrained air. Furthermore, the cleaning process and material transfer introduced potential hazards.
Risk of Ignition: Despite remote operation capabilities, the existing mechanical mixer still presented a risk of ignition. This posed a significant safety concern for the workers and the entire facility.
Cleaning and Material Transfer Hazards: The cleaning process and material transfer in the bladed mixing system carried inherent risks. The potential for improper cleaning or inadequate material transfer compromised product quality and safety.
Inconsistent Material Performance: The entrainment of air during mixing resulted in inconsistent material properties and reduced performance. This inconsistency affected the reliability and predictability of the manufactured explosives and propellants.
Upon evaluating the Hauschild SpeedMixer®, the manufacturer Made the determination that there were numerous advantages that made upgrading their mixing technology an easy decision.
Enhanced Safety Features: The Hauschild SpeedMixer® offered significant safety improvements. By mixing in closed, single-use, conductive containers, the risk of ignition associated with traditional mechanical mixers was eliminated. This ensured improved worker safety and helped protect the facility from potentially catastrophic events.
Eliminated Cleaning and Improved Material Transfer: With the Hauschild SpeedMixer®, the previous concerns related to cleaning and material transfer were effectively addressed. The company determined that by mixing in a closed, single use container they could eliminate the cleaning process and transfer the material safely in the mixing container.
Elimination of Entrained Air: One of the notable benefits observed by the manufacturer was the removal of entrained air during the mixing process. The Hauschild SpeedMixer® ensured the absence of air bubbles, resulting in improved and more repeatable material properties. This enhanced consistency and reliability in the performance of their explosives and propellants.
By adopting the Hauschild SpeedMixer®, the high-energy materials manufacturer successfully addressed their concerns regarding safety, cleaning, material transfer, and material performance consistency. The company determined that the highest level of safety, efficiency, and product quality could be achieved by using Hauschild equipment for their mixing process. This case study illustrates the significance of evaluating the risks associated with high-energy materials manufacturing so that the best equipment can be selected to mitigate risks and optimize operations.
Unmatched Laboratory Mixing Innovation
Secondary features and benefits - value
Easy scale-up
Ample power & mixing volume, precision controls, and compatibility with a plethora of mixing containers & accessories make scale-up from smaller Hauschild mixers (or other types of mixers) fast and easy. Furthermore, our experienced and knowledgeable staff are here to support you along the way.

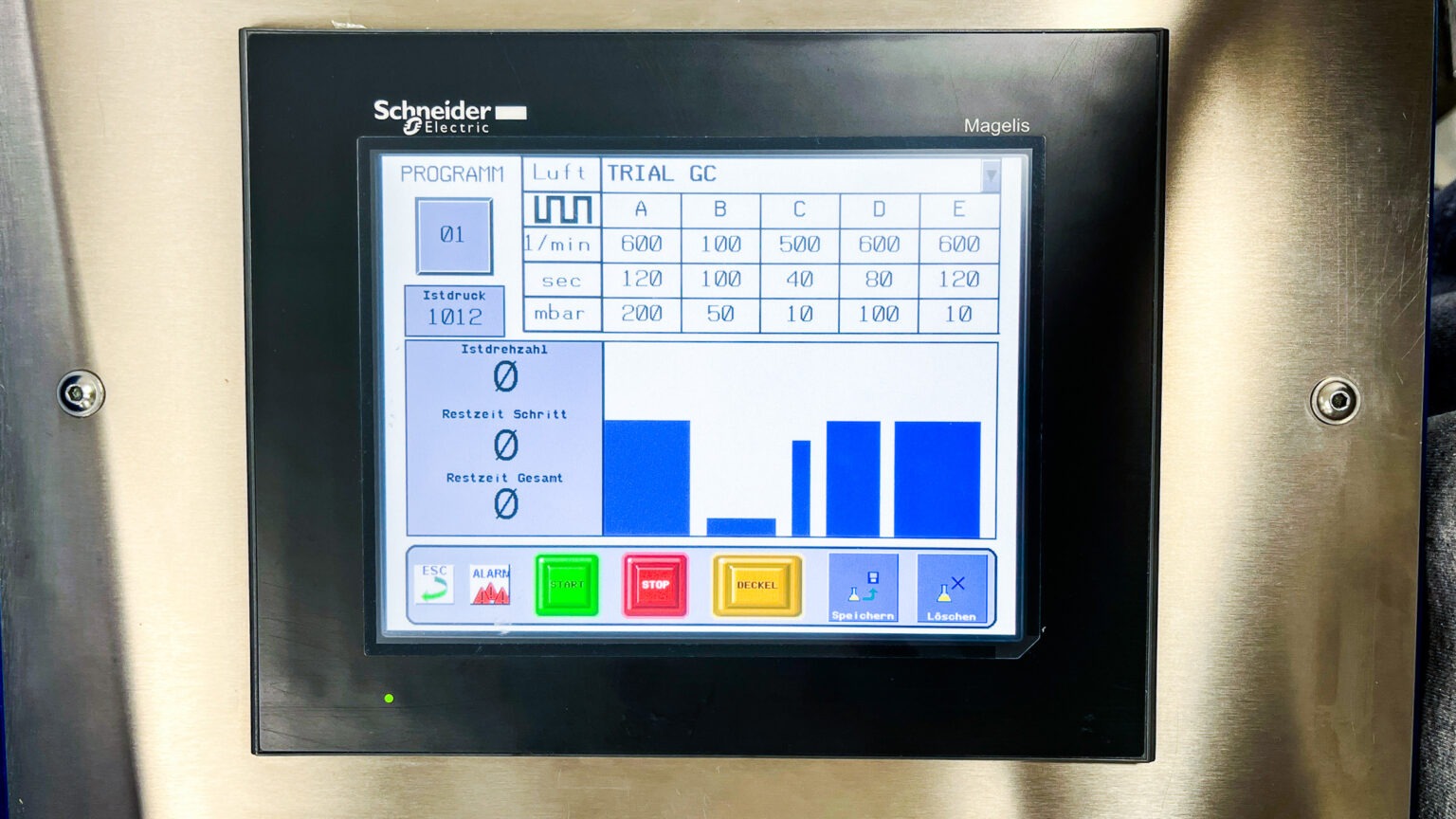

Live control of mixing parameters while mixing
The encoder knob which is included with the new SMART DAC interface gives the operator the ability to precisely adjust mixing parameters live during the process. This provides a tremendous advantage for both process development and process optimization as the equipment does not need to stop to be reprogrammed.
Feature applications & videos
Featured Accessories

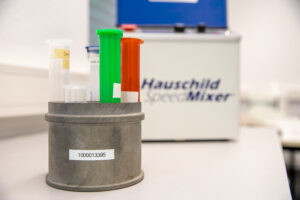

Numerous Options
Depending on the mixing weight and feeling volume different cups are available for your Hauschild SpeedMixer®. All mixing cups can be used as disposable items. Hot child offers jars in several colors, beside transparent, white and black, which is suitable for photo sensitive material. The most used jars are made of polypropylene (PP) due to its high resistance to the temperature and the low chemical reactivity. Dimensions of the cups and buckets go from few ml to up to 16l of normal capacity.
- PP 1500, 0.6gal, 1.25gal, 2.5gal, 3.5gal, 5gal
- SS1000, SS1600, SS2500

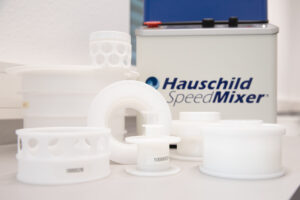

Standard and Customized
To help the customers obtaining the best results with their Hauschild SpeedMixer®, we continuously work on the research and development of accessories. Custom made adapters have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you.have been designed to allow our customers mixing in a wide range of small and large container such as poly propylene jars, syringes, cartridges, glass, bottles, and customized containers. Our solutions allow mixing in one or more containers for every run. We are pleased to help you finding the best suitable accessory for your machine.
- 6gal, 1.25gal, 2.5gal
- Vacuum chambers

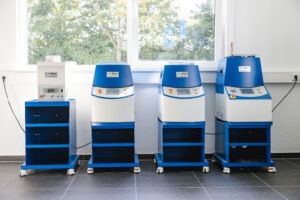

Comfort and Safety For Your Workstation
An optimized steel stand is available for the series DAC 400 to DAC 1100. The Hauschild SpeedMixer® is positioned on the stand at a user-friendly, working height and with sufficient storage space for accessories. The flexible wheels guarantee an optimal and horizontal position of the machine.
Technical specs & capability comparison
Criteria | Hauschild SpeedMixer DAC | Hauschild SpeedMixer SMART DAC | Thinky Mixers | Mazerustar (Kurabo) Mixers | FlackTek Mixer |
Inventor of the DAC (Dual Asymmetric Centrifuge) technology. | Yes | No | No | No | |
Original technology patent. | Yes | No | No | No | |
In the market since. | 1974 | 2021 | 1984[1] | 1990 | 2020 |
Field tested technology. | 49 years[2] | 39 years | 33 years | 3 years | |
Mixing weight (grams). | Up to 10.000 | Up to 2.000[3] | Up to 2×10.000 | Up to 2×10.000 | Up to 2×10.000 |
Lab-size 2kg machine | No | Yes | Yes | Yes | No5 |
Programmable/Programs. | Up to 50 | Up to 500 | Up to 250 | ||
Remote operation. | Yes | ??? | ??? | Yes | |
Independent variable counterrotation[4]. | No | Yes | No5 | No5 | No5 |
Real time material’s temperature reading. | No | Yes | No[5] | No5 | No5 |
Automatic material’s temperature control. | No | Yes | No5 | No5 | No5 |
Automatic material cooling system. | No | Yes | No5 | No5 | No5 |
Mixing under vacuum | Yes | Yes | Yes | Yes | |
Robotic version. | Yes | Yes | Yes | Yes | |
Vacuum robotic version. | No | Yes | No5 | No5 | No5 |
Integrated automatic strobe-light | No | Yes | No5 | No5 | Custom solution |
Warranty period (months) | 12 | 12 | 12 | 6 to 12 | |
Expected lifetime | 20+ years | Unknown | Unknown | Unknown | |
Made in … | Germany | Japan | Japan | USA | |
Type of company | Traditional family business | Corporation | Public | Single owner | |
Ownership | Germany | Japan | Japan | UK | |
Local presence with technical support | |||||
[1] The company was founded in 1971 and, according to the website, the development of the mixer took 13 years.
[2] The DAC and the SMART DAC share the same core technology.
[3] Soon available also up to 10kg.
[4] With separate, dedicated servomotor.
[5] No evidence was found about this feature.
| Model | DAC 3000.3 FVZ | DAC 5000.3 FVZ | DAC 10000.3 FVZ |
| Specialty manufacturing | Specific gravity > 1.5 g/cc | Cosmetics | |
| Commonly used for | Medical devices | Explosives & High Energetics | Battery slurries |
| Pharmaceuticals | conductive pastes | Ceramics | |
| Performance | |||
| Mixing speed – RPM | 50 – 1000 | 50 – 800 | 50 – 800 |
| Gross mixing capacity | up to 3000 g (6.61 lb.) | up to 5000 g (11.02 lb.) | up to 10000 g (22.05 lb.) |
| Largest container volume | 6000 ml (1.25gal) | 9000 ml (2.5gal) | 15000 ml (3.5gal) |
| Smallest container volume | <10ml (0.003 gal) | <10ml (0.003 gal) | <10ml (0.003 gal) |
| Programs | 300 (500 Pro Version) | 300 (500 Pro Version) | 300 (500 Pro Version) |
| Mixing zones per program | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) |
| Max runtime per cycle | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) |
| Adjustable counterweight | ✓ | ✓ | ✓ |
| Design | |||
| User interface | Touchscreen 10″ | Touchscreen 10″ | Touchscreen 10″ |
| Width | 1710 mm (67,32″) | 1710 mm (67,32″) | 1710 mm (67,32″) |
| Width on console | N.A. | N.A. | N.A. |
| Height (lid closed) | 1220 mm (48,03″) | 1220 mm (48,03″) | 1220 mm (48,03″) |
| Height (lid open) | 1700 mm (66,92″) | 1700 mm (66,92″) | 1800 mm (70,86″) |
| Height on console (lid closed) | N.A. | N.A. | N.A. |
| Height on console (lid open) | N.A. | N.A. | N.A. |
| Depth | 1200 mm (47,24″) | 1200 mm (47,24″) | 1200 mm (47,24″) |
| Depth on console | N.A. | N.A. | N.A. |
| Weight | 1200/2640 (kg/lb) | 1250/2750 (kg/lb) | 1700/3740 (kg/lb) |
| Input Power | 3 phase 480V | 3 phase 480V | 3 phase 480V |
| Peak power consumption | 5500W | 5500W | 7000W |
| Vacuum interface | N.A. | N.A. | N.A. |
| Capabilities | |||
| Liquid mixing (< ~300k cps) | ✓ | ✓ | ✓ |
| Paste mixing (> ~300k cps) | ✓ | ✓ | ✓ |
| High viscosity mixing (> ~10M cps) | ✓ | ✓ | ✓ |
| Powder mixing | ✓ | ✓ | ✓ |
| Mix liquid with paste | ✓ | ✓ | ✓ |
| Mix powder with paste | ✓ | ✓ | ✓ |
| Mix liquid with powder | ✓ | ✓ | ✓ |
| Mixing multiple samples at once | Accessory | Accessory | Accessory |
| Dispersion | ✓ | ✓ | ✓ |
| Milling & pulverization | Accessory | Accessory | Accessory |
| Stroboscopic process monitoring | Available | Available | Available |
| Live material temperature monitoring | Available | Available | Available |
| Cooling & temperature control | No | No | No |
| Variable counterrotation | No | No | No |
| Manufacturing optimized interface | Manufacturing package | Manufacturing package | Manufacturing package |
| Deairing & bubble removal | ✓ | ✓ | ✓ |
| Vacuum degassing | No | No | No |
| Cartridge deairing | Accessory | Accessory | Accessory |
| Syringe deairing (1 or multiple) | Accessory | Accessory | Accessory |
| Model | DAC 3000.4 VAC-P | DAC 5000.4 VAC-P | DAC 10000.4 VAC-P |
| Smaller samples | Conductive materials | Battery slurries | |
| Commonly used for | Very high viscosities (>5M cps) | Medical devices | Dental composites |
| Dental composites | Medical devices | ||
| Performance | |||
| Mixing speed – RPM | 50 – 900 | 50 – 800 | 50 – 600 |
| Gross mixing capacity | up to 3000 g (6.61 lb.) | up to 5000 g (11.02 lb.) | up to 10000 g (22.05 lb.) |
| Largest container volume | 6000 ml (1.25gal) | 9000 ml (2.5gal) | 15000 ml (3.5gal) |
| Smallest container volume | <10ml (0.003 gal) | <10ml (0.003 gal) | <10ml (0.003 gal) |
| Programs | 300 (500 Pro Version) | 300 (500 Pro Version) | 300 (500 Pro Version) |
| Mixing zones per program | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) | 6 (12 to 36 Pro Version) |
| Max runtime per cycle | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) | 10 min. (30 min. Pro Version) |
| Adjustable counterweight | ✓ | ✓ | ✓ |
| Design | |||
| User interface | Touchscreen 10″ | Touchscreen 10″ | Touchscreen 10″ |
| Width | 1710 mm (67,32″) | 1710 mm (67,32″) | 1710 mm (67,32″) |
| Width on console | N.A. | N.A. | N.A. |
| Height (lid closed) | 1220 mm (48,03″) | 1220 mm (48,03″) | 1220 mm (48,03″) |
| Height (lid open) | 1700 mm (66,92″) | 1800 mm (70,86″) | 1800 mm (70,86″) |
| Height on console (lid closed) | N.A. | N.A. | N.A. |
| Height on console (lid open) | N.A. | N.A. | N.A. |
| Depth | 1200 mm (47,24″) | 1200 mm (47,24″) | 1200 mm (47,24″) |
| Depth on console | N.A. | N.A. | N.A. |
| Weight | 1250/2750 (kg/lb) | 1700/3740 (kg/lb) | 1700/3740 (kg/lb) |
| Input Power | 3 phase 480V | 3 phase 480V | 3 phase 480V |
| Peak power consumption | 5500W | 7000W | 7000W |
| Vacuum interface | 10mm tube or 1/4 NPT | 10mm tube or 1/4 NPT | 10mm tube or 1/4 NPT |
| Capabilities | |||
| Liquid mixing (< ~300k cps) | ✓ | ✓ | ✓ |
| Paste mixing (> ~300k cps) | ✓ | ✓ | ✓ |
| High viscosity mixing (> ~10M cps) | ✓ | ✓ | ✓ |
| Powder mixing | ✓ | ✓ | ✓ |
| Mix liquid with paste | ✓ | ✓ | ✓ |
| Mix powder with paste | ✓ | ✓ | ✓ |
| Mix liquid with powder | ✓ | ✓ | ✓ |
| Mixing multiple samples at once | Accessory | Accessory | Accessory |
| Dispersion | ✓ | ✓ | ✓ |
| Milling & pulverization | Accessory | Accessory | Accessory |
| Stroboscopic process monitoring | Available | Available | Available |
| Live material temperature monitoring | Available | Available | Available |
| Cooling & temperature control | No | No | No |
| Variable counterrotation | No | No | No |
| Manufacturing optimized interface | Manufacturing package | Manufacturing package | Manufacturing package |
| Deairing & bubble removal | ✓ | ✓ | ✓ |
| Vacuum degassing | ✓ | ✓ | ✓ |
| Cartridge deairing | Accessory | Accessory | Accessory |
| Syringe deairing (1 or multiple) | Accessory | Accessory | Accessory |
